The Complete Guide to Build Your Perfect IP Paging System
Looking to upgrade your facility’s communication system? This comprehensive guide covers everything you need to know about IP paging systems—from basic technology overview to speaker selection, installation, and integration with VoIP phones and emergency systems.
Whether you’re evaluating IP vs. SIP speakers, calculating costs, or planning your deployment, this guide provides the technical depth you need to make informed decisions.
Common Applications
- Warehouse paging systems for break bells and safety alerts
- Factory announcement systems for production communication
- Overhead paging for offices and schools
- School bell intercom system
- Industrial PA systems for manufacturing facilities
What You’ll Learn:
- How IP paging systems work and why they’re 50-70% less expensive than traditional PA systems
- IP vs. SIP speaker comparison and which technology fits your needs
- Speaker selection by environment (horn, ceiling, wall-mount)
- VoIP integration, scheduling automation, and emergency alert capabilities
- Complete product specifications and installation requirements
1. Executive Summary
Modern IP paging systems represent a fundamental change from traditional analog PA systems. By leveraging existing network infrastructure and Power over Ethernet (PoE) technology, businesses can deploy sophisticated communication systems at a fraction of traditional costs while gaining unprecedented flexibility and scalability.
Key Advantages of IP-Based Paging
Cost Savings – 50-70% lower equipment costs compared to enterprise analog systems – Eliminates need for dedicated amplifiers and speaker wire – Reduces installation labor by 60-80% – Typical DIY installation saves $5,000-$10,000 in contractor fees
Technical Benefits – Single cable for both power and audio (PoE) – Scalable for growth without infrastructure changes – Remote management and monitoring – Utilize existing IT infrastructure
Operational Benefits – Zone-based control for targeted messaging – Scheduled pre-recorded announcements – Multiple audio sources (live, pre-recorded, external source such as MP3, radio for background music) – Emergency alert prioritization
Explore Ready-to-Deploy IP Paging Systems →
2. IP Speaker Technology Overview
What Are IP Paging Speakers?
IP paging speakers are network-connected audio endpoints that receive both power and audio through standard Ethernet cabling. Unlike traditional PA systems requiring dedicated speaker wire, power amplifiers, and analog distribution, IP speakers function as self-contained units that simply plug into your existing network infrastructure.
How IP Speakers Work
Network Connection
Each speaker connects to a PoE-enabled network switch using standard Cat5e or Cat6 Ethernet cable (maximum run: 100 meters/328 feet).
Power Delivery
Power over Ethernet (PoE/PoE+) technology delivers electrical power through the same cable that carries data, eliminating the need for separate power supplies.
Audio Protocols
IP speakers support three audio distribution methods:
- Unicast: One-to-one communication (specific speaker targeting)
- Multicast: One-to-many communication (zone-based broadcasting)
- Broadcast: One-to-all communication (facility-wide announcements)
Audio Quality
Digital audio transmission at 192 kbps provides clear, high-quality sound reproduction with minimal latency (typically <100ms).
3. IP Speakers vs. SIP Speakers: Which to Choose?
Linortek offers two distinct speaker technologies. Understanding the differences will help you select the right solution.
Netbell IP Speakers
Technology
Network audio protocol optimized for Linortek ecosystem. Configured and managed through Linortek’s free NACT (Network Audio Configuration Tool) desktop application.
Best For:
- Standalone PA systems without VoIP infrastructure
- Budget-friendly deployments
- Warehouses and factories with simple requirements
- Organizations wanting DIY solutions
Advantages:
- Lower equipment cost
- Simpler configuration for basic deployments
- Configure & forget low maintenance operation
VoIP Integration:
Requires Netbell-AU-711-SIP paging gateway to connect with VoIP phone systems.
Pricing:
Speakers start at $334 – Hardware & software for installation and operations included.
Netbell SIP Speakers
Technology
Standards-based SIP 2.0 protocol (RFC 3261) providing universal compatibility with any SIP-enabled device or system.
Best For:
- Maximum flexibility and future-proofing
- Professional AV integrations
- Multi-vendor environments
- Organizations with existing SIP infrastructure
Advantages:
- No vendor lock-in – Works with ANY SIP device
- Direct VoIP integration – No gateway needed
- Mix and match brands – Compatible with industry-standard SIP devices
- Cost-effective multicast – One VoIP license serves unlimited speakers
- Future-proof – SIP 2.0 is an established standard that won’t become obsolete
VoIP Integration:
Direct registration with VoIP phone systems. Simply register one SIP speaker per zone as an extension, and it can multicast to other speakers in that zone.
Decision Matrix
| Factor | IP Speakers | SIP Speakers |
|---|---|---|
| Initial Cost | Lower | Moderate |
| VoIP Integration | Requires gateway | Direct |
| Vendor Flexibility | Linortek ecosystem | Any SIP vendor |
| Configuration | NACT software | Web interface |
| Future Compatibility | Network audio protocol | Standards-based |
| Best For | Simple deployments | Professional integration |
Still not sure which speaker type is right for you? Contact our team for a free consultation →
4. Speaker Selection Guide by Environment
Selecting the right speaker form factor is critical for optimal performance. Consider three factors: ambient noise levels, ceiling height, and coverage area.
Horn Speakers (30W)
Model: Netbell-H30-709 (IP) / Netbell-H30-709-SIP
Horns are typically used in manufacturing, warehouse, and outdoor environments, or open environments such as transportation centers.
Coverage Pattern
Horn speakers provide directional coverage with focused sound projection. Sound travels in a cone pattern, reaching farther distances.
Ideal Applications:
- Manufacturing facilities (85+ dB ambient noise)
- Warehouses and distribution centers
- Outdoor areas (loading docks, parking lots, courtyards)
- Open environments (transportation terminals, stadiums)
- High-ceiling facilities (20+ feet)
Installation Specifications:
- Mount height: 12-20 feet
- Mounting angle: 15-30° downward from horizontal
- Speaker spacing: 100-150 feet (varies with ceiling height)
- Coverage radius: 75-100 feet per speaker
Environmental Rating: IP65-rated
Power Requirements
– Input: 12VDC/24VDC/PoE – Consumption: 30W
Wall-Mount Speakers (20W)
Model: Netbell-WM-042 (IP) / Netbell-WM-042-SIP
Wall speaker can be used for hallways or offices/classrooms where drop ceiling is not available.
Coverage Pattern
Wall speakers project sound horizontally, providing consistent forward coverage along the wall-mounted plane. Ideal for linear spaces where listeners move past the speaker.
Ideal Applications:
- Hallways requiring forward coverage
- Areas where ceiling access is limited or unavailable
- Rooms with high ceilings (20+ feet)
Installation Specifications:
- Mount height: 7-9 feet (optimal speech intelligibility)
- Speaker spacing: 20-60 feet (depends on hallway width)
- Coverage: 30-40 feet forward projection
- Placement: Face primary direction of traffic
Mounting Considerations
- Use in pairs for bidirectional hallways
- Position above doorways to prevent obstruction
- Angle slightly downward (5-10°) if mounting above 8 feet
Power Requirements
– Input: 12VDC/24VDC/PoE – Consumption: 20W
Ceiling Speakers (30W)
Model: Netbell-CM-600 (IP) / Netbell-CM-600-SIP
For offices & classrooms.
Coverage Pattern
Ceiling speakers provide 360° omnidirectional coverage, distributing sound evenly throughout the space below. The “cone of coverage” extends downward from the speaker in a circular pattern.
Coverage Rule of Thumb
Space ceiling speakers 2X the ceiling height apart. For 10-foot ceilings, space speakers 20 feet apart.
Ideal Applications:
- Office buildings and corporate environments
- Classrooms and conference rooms
- Retail spaces and customer areas
- Restaurants, hotels, hospitality venues
- Any location with drop-tile ceiling (8-20 feet)
Installation Specifications:
- Ceiling height range: 8-20 feet
- Drop-ceiling tile mounting
- Avoid placement directly above noisy equipment
- Consider acoustic properties of room
Optional Features
The ceiling speakers come with talkback function, optional push button to initiate call for two-way communication.
Power Requirements
– Input: 12VDC/24VDC/PoE – Consumption: 30W

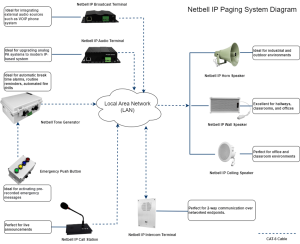

5. Communication & Control Modules
Live voice, pre-recorded messages, emergency alerts can be used with the Netbell IP speaker. Linortek offers multiple communication modules to suit different operational needs.
VoIP Phone System Integration
For IP Speakers: AU-711-SIP Paging Gateway
The AU-711-SIP serves as a bridge between VoIP phone systems and Linortek IP speakers. It registers as a SIP extension on your phone system and multicasts received audio to configured IP speaker groups.
How It Works:
- Register AU-711-SIP as extension on VoIP system
- Configure IP speaker groups in NACT software
- Program AU-711-SIP with speaker group multicast addresses
- Dial extension to broadcast to selected zones
Supported VoIP Platforms:
Cisco, Avaya, 3CX, FreePBX, Asterisk, Grandstream, and any SIP 2.0 compliant system

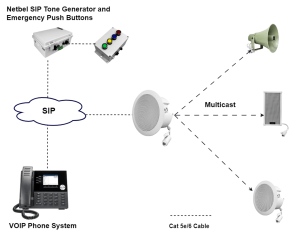

For SIP Speakers: Direct Integration
SIP speakers do NOT require the AU-711-SIP gateway. They register directly with your VoIP phone system as extensions.
How It Works:
- Register one SIP speaker per zone as a VoIP extension
- Configure that speaker to multicast to other speakers in the zone
- Dial the extension to broadcast to entire zone
Cost Advantage:
One VoIP license serves unlimited speakers through multicast. For a 50-speaker system, you might only need 3-4 VoIP licenses (one per zone) instead of 50 licenses or an expensive gateway.
Live Voice Paging
MIC-608G IP Call Station (3 Zones)
Desktop paging microphone with gooseneck mic and 3 programmable zone buttons.
Applications:
- School administrative offices
- Factory supervisor stations
- Reception desks
- Security control rooms
MIC-813 IP Call Station (255 Zones)
Advanced paging station supporting up to 255 individual endpoints or zone groups.
Applications:
- Large campus deployments
- Multi-building facilities
- Complex manufacturing plants
- Hospitals and medical centers
Two-Way Intercom Stations
Outdoor-rated door station for entry points two-way communication.
Applications:
- Building entrances and gates
- Parking garage access points
- Secure facility perimeters
- Visitor communication
Employee announcement station for facility-wide deployment.
Applications:
- Production floor communication
- Emergency stations
- Department-specific announcement points
- Customer service areas
Audio Bridging & External Sources
AU-711 IP Audio Broadcast Terminal
Connect external audio sources to IP speakers.
Applications:
- Background music from MP3 players or streaming devices
- Radio broadcast integration
- Legacy audio equipment integration
- Bridge analog audio sources to IP infrastructure
Bridge legacy PA systems to IP networks or add IP speakers to existing analog infrastructure.
Applications:
- Expand analog PA systems with IP speakers in new areas
- Connect existing amplifiers to IP paging network
- Hybrid analog/IP system deployments
- Phased migration from analog to IP
Browse All IP Paging System Modules →
6. Scheduling and Automation
Netbell-NTG-B Network Tone Generator
The NTG-B is the automation brain of your IP paging system. It schedules events, stores pre-recorded messages, and integrates with external systems.
Core Capabilities:
Event Scheduling
- 500 programmable time-based events
- Support weekday, calendar-based scheduling
- Conditional-logic task builder
- Automatic DST adjustment
- Independent schedules for different zones
Audio Library
- Built-in 40 standard tones and emergency messages
- Upload up to 10 hours of custom audio
Zone and Tone Control System
The Netbell-NTG-B controls tone and message playback through a relay system. Each device has 8 total relays (2 physical + 6 virtual) that can be configured as either zone controls or tone triggers.
Important: You can mix and match these assignments, but the combined total cannot exceed 8 relays per NTG-B device.
Planning Examples:
- 1 zone configured = 7 relays available for tone triggers
- 4 zones configured = 4 tone triggers available
- 6 zones configured = 2 tone triggers available
- 7 zones configured = 1 tone trigger available
Multi-Device Capability:
Multiple Netbell-NTG-B devices can be used in a single system to enable additional location-based messaging beyond the 8-relay limit of a single device.
External Integration (4 Digital Inputs)
- Fire alarm system triggers
- Security panel integration
- PLC and industrial control
- Emergency button activation
- Dry contact or 5-24VDC
RESTful API
- Programmatic event triggering
- Building management system (BMS) integration
- Custom software integration
- Third-party platform connectivity
Network Audio Broadcasting
- Built-in IP audio transmitter
- Multicast to speaker groups
- Zone-specific message delivery
- Priority override capability
Emergency Activation Push Buttons
Manual emergency triggers for instant message activation.
Hardwired connection to NTG-B digital inputs. Four color-coded buttons (red, blue, yellow, green) for different emergency types.
Typical Configuration:
- Red: Fire/Evacuation
- Blue: Severe Weather/Tornado
- Yellow: Security Threat/Lockdown
- Green: All Clear
Installation: Direct wiring to NTG-B within 100 feet
Network Remote Push Button Set
IP-connected emergency activation stations deployable anywhere on the network.
Advantages:
- No distance limitation (anywhere on same LAN)
- Multiple activation points throughout facility
- No special wiring required
Applications:
- Large campuses with distributed emergency stations
- Multi-building facilities – Perimeter security activation
- Department-specific alert triggers
Conclusion
Modern IP paging systems deliver professional-grade communication capabilities at a fraction of traditional costs. By understanding speaker selection, choosing the right technology (IP vs. SIP), and leveraging available communication modules, organizations can design systems perfectly tailored to their needs.
Key Takeaways
Cost Efficiency
IP paging systems deliver 50-70% cost savings compared to traditional analog PA systems while providing superior functionality and flexibility.
Right Speaker for Every Space
Horn speakers for high-noise environments, ceiling speakers for offices, and wall speakers for hallways—each optimized for specific applications.
Technology Choice Matters
IP speakers offer turnkey simplicity and lower costs. SIP speakers provide maximum flexibility and vendor independence. Both deliver professional results.
Automation Capabilities
The NTG-B controller transforms basic paging into a sophisticated communication platform with scheduling, emergency integration, and API control.
