Monitor equipment uptime, get instant downtime alerts, and automate maintenance notification — all through one self-contained device that integrates with your existing equipment. No software subscriptions or third-party servers required with a remote hour meter.
Monitor your equipment’s performance with Linortek Ethernet Machine Hour Meter – the network-enabled solution that tracks crucial metrics including:
• Cumulative usage hours
• Equipment uptime and downtime
• Custom counting functions
Access your equipment data remotely over the Internet without additional software or monthly fees. Schedule customized reports delivered directly to your inbox daily, weekly, or monthly.
Linortek Ethernet Hour Meter connects your offline equipment to your network, providing real-time monitoring and data collection from anywhere.
Monitor your equipment hours with precision to keep maintenance schedules on track and improve performance.
Monitor your equipment’s performance with dual counters for precise runtime and downtime tracking.
Log your runtime data automatically into CSV files, keeping your reports organized and analysis simple.
Easily monitor runtime, temperature, and key metrics with adaptable inputs that fit your system.
Check real-time data on your mobile or desktop, keeping you informed no matter where you are.
Rely on a durable design that works hard in harsh environments and demanding conditions.
• Network enabled all-in-one system, no 3rd party server and no monthly fees
• Internet independent using your intranet
• Record time from 0 to 999,999.99 hours
• Resettable hours for using with existing equipment
• Non-resettable option available
• Two separate hour meters with independent triggers
• Multiply triggers input/relay/input voltage
• Monitor multiple equipment runtime with HourCollector desktop app
• User settable data report interval giving you flexible control of when to get the data
• Import the hour readings data in CSV file to your management software
• Transfer the data automatically with the RESTful API
• Integrate the data to CMMS software using MQTT
• Use relay output to signal alarm devices when maintenance required
The Ultra 300 is the latest development of Linortek web-enabled I/O controller with MQTT protocol, hardware-based encryption, supports HTTPS connections, encrypted email servers, CAN interface, increase in RAM and FLASH memories. The iTrixx-Ultra 300 is a housed unit with a DIN rail mountable enclosure that can be snapped onto DIN rail or attached to any flat surface such as a wall or under a counter, built-in web-based software for runtime tracking. The hour recording can be triggered by relay output, digital input or voltage input. It has 2 relay outputs (Dry contact, signal relay,2 Form C, 1A @ 30VDC), 2 optically isolated digital inputs, 2 analog inputs, 1 temperature & humidity sensor input.
The iTrixx-NHM is a housed unit in a Din-rail mountable enclosure, built-in web-based software for runtime tracking. The hour recording can be triggered by relay output, digital input or voltage input. It equips with 2 digital inputs (5-24VDC), 2 relay outputs (1-Form-A relays 48VAC@8A max, dry contact), 1 analog input for temperature & humidity monitoring.

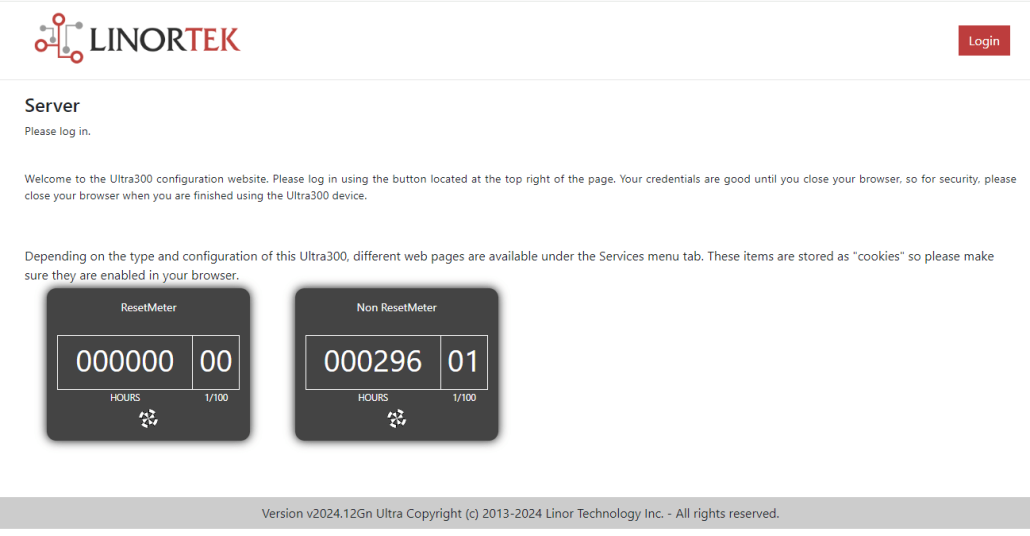

Once you install the iTrixx on your machine and connect it to your network, it will get an IP address automatically from your router, put the IP address to your web browser to access the software for initial setup to quickly discover equipment uptime and usage data from the web browser or the HourCollector desktop app. Automatically trigger alerts to respond quickly to equipment failure and improve machine efficiencies.
There are two meter counters built-in on the software with independent trigger. You can use one for uptime, one for downtime, or one for machine usage tracking, one for counter of stops of the machine. With the built-in condition-logic task builder allows you to create custom “Tasks” for simple and advanced control logic. Easily create tasks based on inputs or outputs status. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!
MQTT is a simple messaging protocol, designed for constrained devices with low-bandwidth. So, it’s the perfect solution for Internet of Things applications. MQTT allows you to send commands to control outputs, read and publish data from sensor nodes and much more. The new development provides a standard method of communication for iTrixx to reliably communicate data across networks with any IoT platform and applications, it makes it really easy to establish a communication between iTrixx and other devices, enables iTrixx become a standard product in IIoT arena for data acquisition.

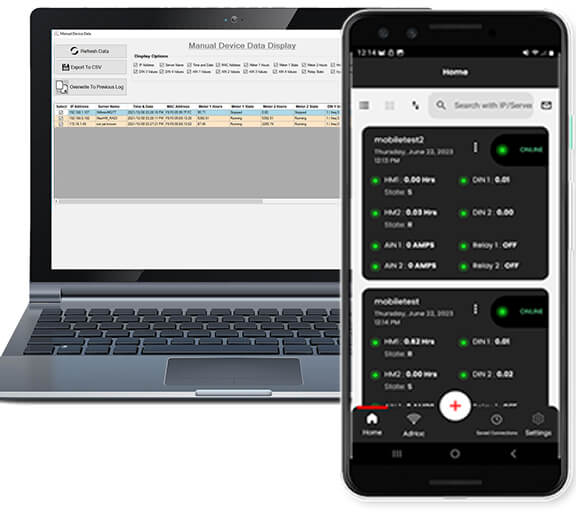

We understand that busy floor managers and maintenance professionals can’t always be tied to a desk. That’s why we’ve developed powerful mobile and desktop apps to keep you informed on the move. With iTrixx®, you’re always in control, whether you’re on the factory floor, in the office, or on the go.
Monitor your machine data anytime, anywhere. Perfect for floor managers who need real-time information at their fingertips.
Automatically saves data from all iTrixx devices on your network to a CSV file, simplifying data analysis and system integration.
Our most advanced app, designed for multi-location monitoring. Connect to an MQTT broker to track all your devices, regardless of their physical location.
We understand that busy floor managers and maintenance professionals can’t always be tied to a desk. That’s why we’ve developed powerful mobile and desktop apps to keep you informed on the move. With iTrixx®, you’re always in control, whether you’re on the factory floor, in the office, or on the go.
| Model | iTrixx-Ultra 300 | iTrixx-NHM | iTrixx-WFMN-ADi | iTrixx-WFMN-Di |
|---|---|---|---|---|
| Part Number | 01-910-00111 | 01-910-00024 | 01-910-00060 | 01-910-00064 |
| Web Server | Built-in (All Software Located on Built-in Web Server) | Built-in (All Software Located on Built-in Web Server) | Built-in (All Software Located on Built-in Web Server) | Built-in (All Software Located on Built-in Web Server) |
| Software Configuration | Web Browser | Web Browser | Telnet (30316 port) | Telnet (30316 port) |
| Desktop App | Included | Included | Included | Included |
| Relay Outputs | 2 (Signal Relay, 2 Form C, 1A @ 30VDC, dry contact) | 2 (1 FORM A 48VAC@8A Max, dry contact) | 2 (Signal Relay, 2 Form C, 1A @ 30VDC, 0.3A @ 125VAC, dry contact) | NA |
| Digital Inputs | 2 – ISO 5–24VDC / Pull-Up Mode | 2 – ISO 5–24VDC / Pull-Up Mode | 2 – ISO 5–24VDC / Pull-Up Mode | 2 – ISO 5–24VDC / Pull-Up Mode |
| Analog Inputs | 2 Isolated 2-wire (5V or 4–20mA) 1 for Temp & Humid only | 1 for Temp & Humid only | Isolated 2-wire (5V or 4–20mA) | NA |
| Record Time (hrs) | 0 – 999,999.99 | 0 – 999,999.99 | 0 – 999,999.99 | 0 – 999,999.99 |
| Data Integration | RESTful API, MQTT, XML, JSON | UDP, RESTful API, XML | JSON, UDP, MQTT | JSON, UDP, MQTT |
| Data Monitoring | Local or Remote | Local or Remote | Local or Remote | Local or Remote |
| Security Protocols | TLS, SSL | NA | TLS, SSL | TLS, SSL |
| Power Input | 12–48 VDC or POE | 12–48 VDC or POE | 12–48 VDC | 12–48 VDC |
| Enclosure | DIN Rail Mountable | DIN Rail Mountable | IP66/67 Polycarbonate Box | IP66/67 Polycarbonate Box |
| Certifications | NA | NA | FCC, CE and ROHS | FCC, CE and ROHS |
| Network Connectivity | Ethernet Port: 10/100Base-TX PoE | Ethernet Port: 10/100Base-TX PoE | WiFi: IEEE 802.11b/g/n 2.4GHz | WiFi: IEEE 802.11b/g/n 2.4GHz |
| Buy iTrixx-Ultra 300 | Buy iTrixx-NHM | Buy iTrixx-WFMN-ADi | Buy iTrixx-WFMN-Di |
Our knowledgeable sales representatives can help you find the right solution to meet your exact needs within your budget.
