How to Design an Emergency Paging and Visual Alert System for Your Facility

–  A practical guide to design an emergency paging & visual alert system – choosing speakers, visual alerts, and triggers that meet OSHA and actually get noticed on a noisy plant floor.

An emergency paging and visual alert system has to do two things an ordinary PA system can’t: be perceivable above heavy machine noise, and clearly signal which emergency is happening. That’s the heart of OSHA’s employee-alarm standard, and it’s why the strongest industrial systems pair loud audible paging with visual alerts on screens — so a warning is both heard on the floor and seen in the zones where noise drowns out a voice. This guide walks through the design decisions in the order you’ll actually make them: what OSHA requires, how to read your facility, which speakers fit each area, when to add visual alerts, how alerts get triggered, and what it costs.

Start with what OSHA requires

The baseline is OSHA 29 CFR 1910.165, the employee-alarm standard. In plain terms, it requires an alarm that’s perceivable above the ambient noise and light levels of the workplace and distinctive enough to be recognized as a signal to act. On a floor running at 85–95 dB, an ordinary overhead page doesn’t clear that bar — which is why “can everyone actually hear it?” is the first design question, not an afterthought. A useful rule of thumb: the alert should land at least 10 dB above the ambient noise in each area.

Map your facility before you pick hardware

Good coverage comes from matching the system to the building, so start by sketching your zones. For each area, note three things — square footage, ceiling height, and typical noise level. A stamping line at 90 dB, a warehouse with 25-foot ceilings, and a carpeted office suite are three different acoustic problems that need three different answers. Ceiling height matters more than people expect: coverage per speaker scales with it, and the sound level drops about 6 dB every time you double your distance from the speaker. Mapping zones also pays off later, since it lets you target alerts — production only, offices only, or the whole site.

Match speakers to each environment

Three speaker types cover almost every industrial space:

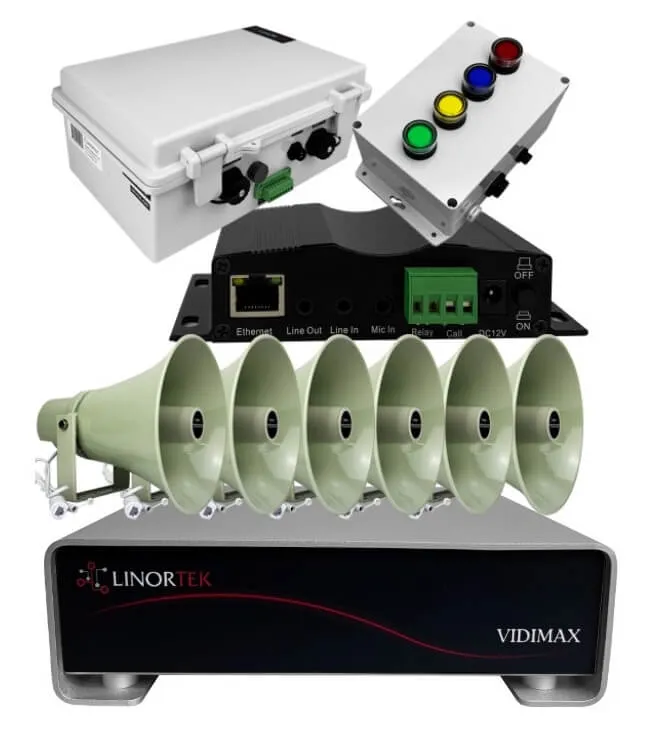

Horns do the heavy lifting in loud, open areas — a single 30W horn covers roughly 5,500 sq. ft. in the noisiest spaces and up to 10,000 sq. ft. in quieter ones, so you can divide an area’s square footage by the right figure to estimate the count. Wall speakers handle hallways with no drop ceiling; ceiling speakers give even coverage in offices. On an IP system like Netbell, each speaker runs on a single Cat5e/Cat6 cable that carries both power and audio (PoE), so there’s no amplifier or 70V speaker wire to design around.

Add visual alerts where audio isn’t enough

In the loudest zones — or anywhere hearing protection, earbuds, or machine noise make audio unreliable — paging alone leaves a gap, and a visual layer closes it. A platform like VidiMax pushes a full-screen, color-coded message to any HDMI TV or monitor, so the alert is seen even where it can’t be heard, with a distinct screen for each emergency. As a bonus, VidiMax also monitors National Weather Service alerts and can push severe-weather warnings — a tornado or lightning warning, say — to the same screens automatically.

Define your alert codes

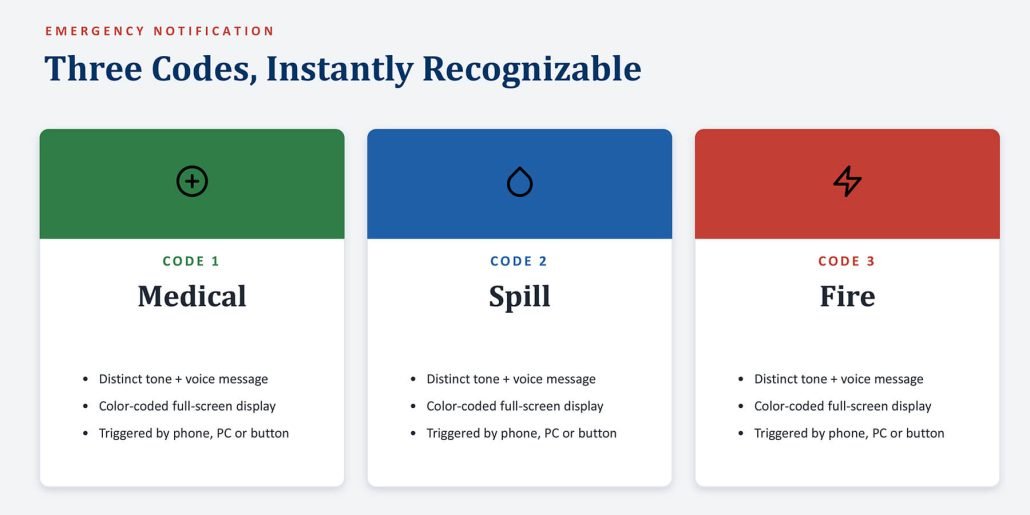

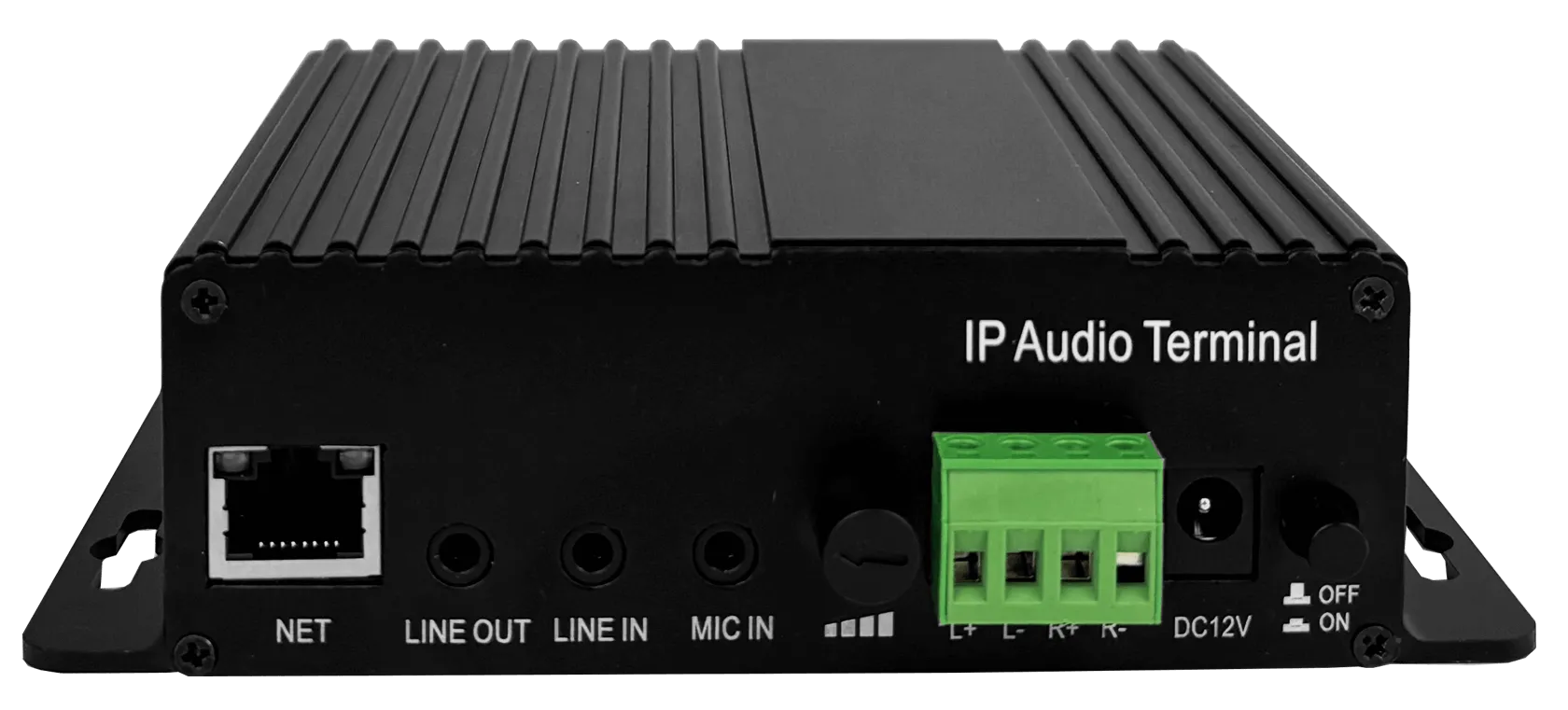

Decide what your facility needs to signal before you buy anything. Most industrial sites settle on a small set of codes — for example medical, chemical spill, and fire — each mapped to its own tone and pre-recorded voice message, plus a matching color on the displays. The goal is instant recognition: staff should know which emergency is active from the sound and the screen, without waiting for someone to explain over the PA. A controller like the Netbell-NTG-B stores those messages and tones, handles fire-drill signals, and can run scheduled announcements and shift bells on the same hardware.

Decide how alerts get triggered

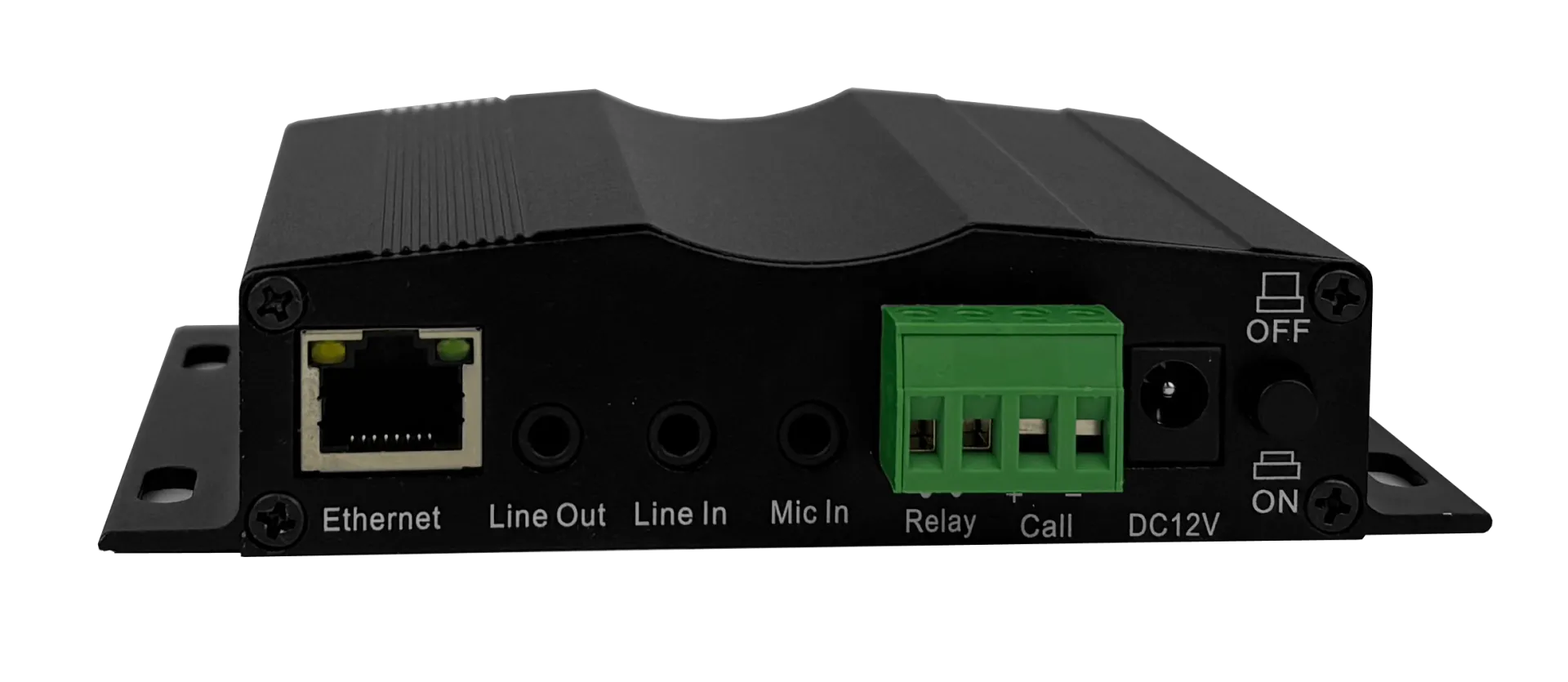

Two paths, and most facilities use both. Automatic triggers tie the controller‘s digital inputs to a fire panel, gas sensor, or pull station, so an alarm fires the instant a condition is detected. Manual triggers let a person set it off — from a desktop app (QuickAction) on any authorized PC, a wall-mounted push-button station in a high-noise area with no nearby phone, or, with a SIP gateway like the AU-711-SIP, live from any authorized phone on your existing system.

Plan for the network and installation

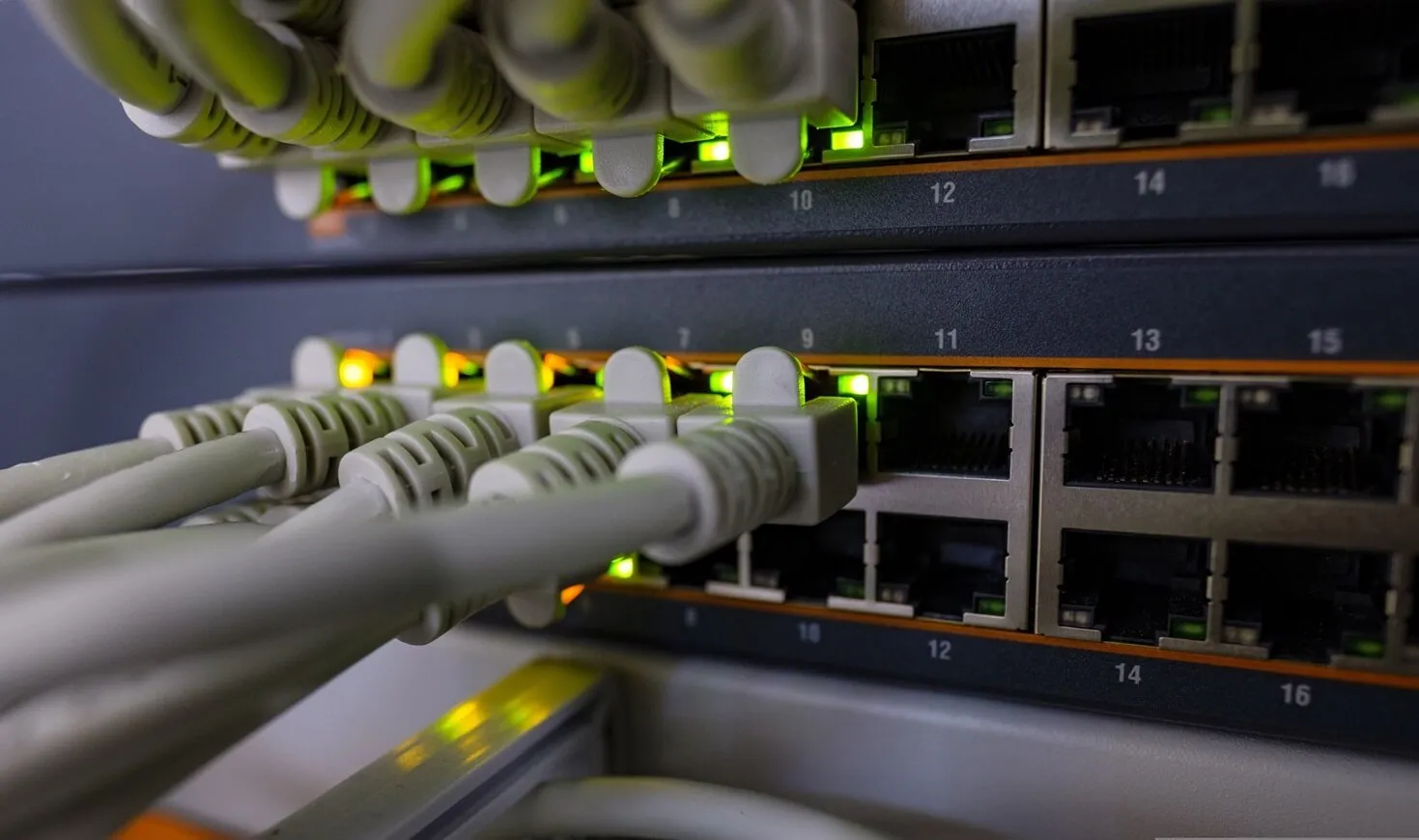

Because an IP system runs over standard Ethernet, the main install effort is the network. Plan for PoE+ switches, a dedicated VLAN to keep audio traffic clean, and Cat5e/Cat6 runs (100 m maximum per cable). Many facilities do the whole job in-house: IT sets up the network, the maintenance team mounts the units — one cable each — and we can handle the software configuration. There’s no specialty low-voltage AV work required.

How much does an industrial emergency alert system cost?

The equipment cost scales with your facility, but it’s easiest to think in two parts: a fixed base system that runs everything, and the speakers and displays you add to cover your square footage.

The base system is roughly the same whether you’re covering one building or several — the controller, a manual trigger, a live-paging station, and the visual server:

From there you add coverage: 30W IP horn speakers at $438 each for production and warehouse areas, and VidiMax display terminals at $299 each, one per HDMI screen. A 100,000-sq-ft facility running about 10 horns and a few displays lands near $12,000 all in. A 1.2-million-sq-ft plant scoping roughly 50 horns and 8 displays comes to about $31,000. Either way it’s a one-time equipment cost with no monthly fees — the figures here are current single-unit list prices, and network switches and cabling are quoted separately.
