Netbell™ Network Bell Controller, A Web-based Timed Alert Controller Via Internet of Things Technology

A compact, self-contained system provides an embedded, web page scheduling software for factories to build a fully automated timed alert system

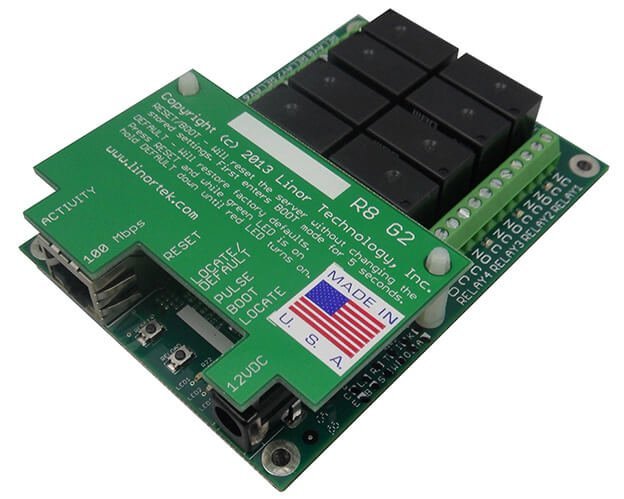

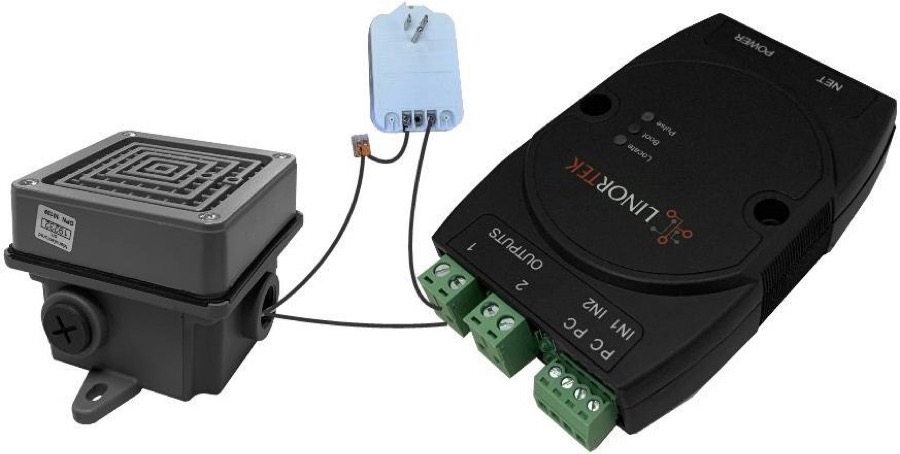

To control your existing time clock bell system, we are offering multiple options of Netbell Network Bell Controllers, Netbell-2, Netbell-4 and Netbell-8, which can work with most of the current systems on the market from low voltage to line voltage. Our Network Bell Controller is built on Linortek existing TCP/IP product platform with a built in web server and special software designed for scheduling a factory or school bell system.With Netbell Network Bell Controller, you can access, control and schedule bells / buzzers or any timed signal equipment individually over a network or the Internet, no additional software or designated computer required. The built in web interface provides quick access to setup and manage your bells / buzzers or any other signaling devices. The Netbell Network Bell Controller is an ideal solution for schools, factories to upgrade their old fashion bell system to a fully automated web-based timed alert system for signaling class changes, shift rotations, breaks and any other timed signal applications.

Our Netbell product comes with a built-in real time clock with NTP automatic Internet time setting and gets its time from a standard internet NTP time server. It looks for time every 10 minutes from NTP server by default (users changeable), which maintains the time between requests with a Real Time Clock (RTC) within the main CPU. There is also a back-up RTC with battery power to maintain time during power interruptions or if not connected to the internet.

For those who wish to forego networking the Netbell, it is also able to function as a stand-alone device. Connecting the unit to a PC, upload the bell schedules, then remove, and it will function as scheduled. Whether stand-alone or networked, users can easily import/export their existing bell schedules using a simple text format.

If you are looking for a complete timed alert solution, you can check Netbell – Bell System.

In areas of high ambient noise levels needed, you can check Netbell – Buzzer System.

Netbell Break Bell System Brochure C (739.1 KiB, 518 downloads)
Netbell Bell Controller Specificatios (159.1 KiB, 248 downloads)

The Key Features

  • Up to 500 bell event schedules, each schedule can set different duration for different event.
  • Import/export bell schedules from existing data in text format.
  • The built in web interface provides quick access to setup and manage your bell/buzzer over the Internet, no additional software or designated computer required.
  • Flexible and accurate control of when the bells ring (HH:MM:SS, SUNDAY-SATURDAY).
  • Built-in real time clock synchronizing with NTP server every 10 minutes (user changeable)
  • Completely configurable network settings including static or dynamic IP.
  • Built in rechargeable battery for power fail backup.
  • Program and web page interface are upgradable over the internet.
  • Designed, developed and made in USA.

Networked Bell System

For anyone who has separate areas or multiple buildings where running additional wiring is not an option, but the locations are connected by a network, then we have a solution using the remote feature built into our products. We call it “Networked Bell System”. With our Netbell product and our Koda web controller you can setup a system over a network to ring multiple bells or horns on multiple locations. The Netbell would work as your master control board for scheduling, and then with the remote function built in you can also control additional bells with Koda web controller remotely.
