Web Relay Controller

TCP/IP platform with a built-in SERVER, using relay switched outputs, digital inputs and analog inputs, you can upgrade any stand-alone physical hardwired device to a network/ Internet enabled product for control and data acquisition.

All-In-One System
No software to purchase, no 3rd party server, program from web browser
Easy to Use
Device can “talk” to each other via IP address, eliminating the wiring and control system
Fully Programmable
Simple yet powerful “IF this THEN do that” Task, the use of our controller are endless
Secure Data
Internet independent if using intranet, data transfer doesn’t go through the Firewall
Flexible for Customization
State of the art technology, in-house design and manufacturing, easily customized yet low cost solution

Request for Customization

Our Controller is built on the “Internet of Things” technology and has been used and loved by thousands of customers

It can be used in new builds or retrofit older devices, providing connection to the Internet for remote control and data acquisition.

Our web relay controller – Fargo and Koda, is a web SERVER, which is built on a standard TCP/IP platform with a built in web server, using relay switched outputs, opto-isolated inputs and analog inputs, you can upgrade any stand-alone physical hardwired device to a network/ Internet control product. This lets you access, control and monitor these devices with standard Internet browsers, with no 3rd party server, no additional software or programming required and no monthly fees.

Supplied with up to 16 schedules which are constructed as IF … THEN statements. IF this THEN do that. In addition the IF term can have 2 elements; IF this LOGIC … THEN that. This provides a simple to program and powerful way to take advantage of the data acquired by the SERVER, gives you the ability to have one SERVER control another. This capability built into all units allows you to use the input or relay on one device to control a relay on another device over a network, or to take a signal from your main location system, and trigger remote equipment in different locations. You can also control & monitor some functions through RESTful command, which will give you more flexibility of using our products to integrate to your systems.

Fargo family is a bare board unit with up to 8 relay outputs, 4 digital inputs and 4 analog value inputs, while Koda family is a housed unit with a DIN rail mountable enclosure with up to 4 relay outputs, 2 digital inputs, you can check our product comparison chart to select the right one for your projects!

The Koda and Fargo web relay controllers have been used to develop custom solutions for IoT niche markets, including timed alert system, equipment hour meter, rainwater management, aquaculture monitoring and many more…

Koda Web Relay Controller

Koda web relay controller is a housed unit with a DIN rail mountable enclosure that can be snapped onto DIN rail or attached to any flat surface such as a wall or under a counter. Koda equips with up to 4 relay outputs, 2 digital inputs that can display state, frequency, period or as a counter.

Order Your Koda Controller Now! Learn More

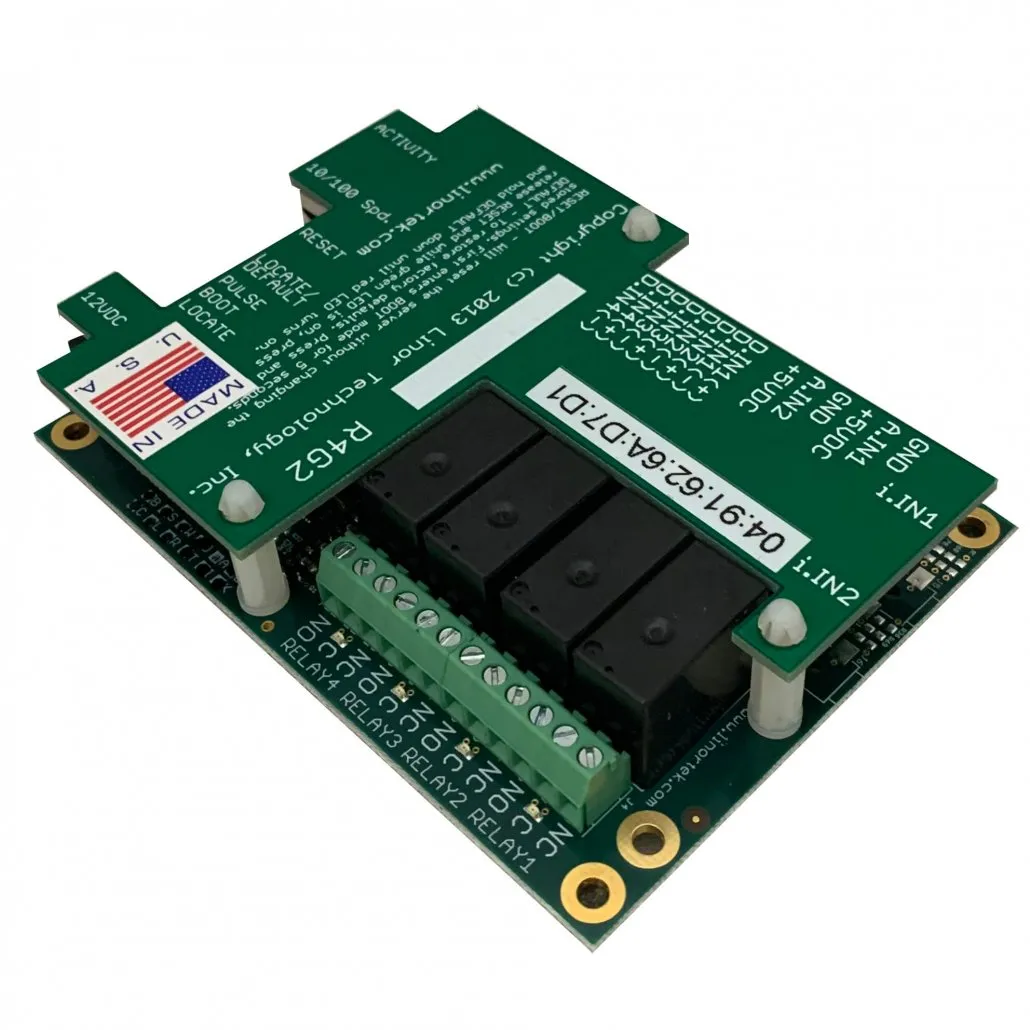

Fargo Web Relay Controller

Fargo web relay controller is a bare board unit with up to 8 low voltage relay outputs, 4 optically isolated digital inputs that can display state, frequency, period or as a counter, 4 analog inputs,2 of the analog inputs are specifically designed for interfacing to current sensors allowing current monitoring of external equipment.

Order Your Fargo Controller Now! Learn More

Custom Web Relay Control & Monitoring Solution

The use of our product is limitless, from security systems and industrial equipment to billboards and lighting to home appliances and thermostats – almost any electrical device that can be controlled and monitored from the Internet remotely can use our product or module. Check our iTrixx Equipment Monitor System page to see our custom developed solutions for some industrial niche market which are built on our existing product platform.

Learn more about iTrixx

About Us

Linor Technology, Inc., a North Carolina corporation, is a research and development company that designs and builds controllers for the “Internet of Things” (IoTs), a market which involves web connection between all types of products. We have developed two basic lines of web controllers used in different niche products, Netbell, IoTMeter and Aquaculture Farm Monitor. These controllers can be easily adapted to other solutions with software layering making is quick and cost effective to enter new markets. This technology focus and expertise has enabled us to take full advantage of the new generation of IoTs for industrial, manufacturing and educational businesses as well as the Aquaculture vertical business with needs for control, monitoring and alert over the Internet. All products are controlled and monitored from a simple and easy to use web page or mobile app.
