Network Hour Meter: Web-based Elapsed Time Indicator

iTrixx Network Hour Meter – Machine Uptime/Downtime Tracking, Automated Alerting and Reporting

Innovative Network Hour Meter uses ‘Internet of Things’ technology accurately monitoring equipment runtime for any stationary equipment.

Linortek Network Hour Meter is an ease-of-use, network enabled, custom developed hour meter that can be used to track equipment cumulative usage, uptime, downtime, or as a counter, audible or visual alerts can be triggered with user definable condition when you connect a signal device to one of the relay outputs, reports can be scheduled to sent to your inbox daily, weekly or monthly or other time interval for various events. With Linortek Ethernet Hour Meter, you can connect your offline equipment to the Internet and collect the equipment runtime data over a network or the Internet, no additional software needed and no monthly fees.

Request Access to View Live Demo

Benefits of iTrixx Network Hour Meter

Respond and resolve downtime immediately
Flexible counter activation (input voltage, digital input, analog input or relay output)
Check equipment data in real time from any internet enable device

One time purchase, no subscription fees, free software update
Hardware and software for installation and operation are included
Simple self-install solution for machinery usage remote monitoring

The Network Hour Meter Hardware

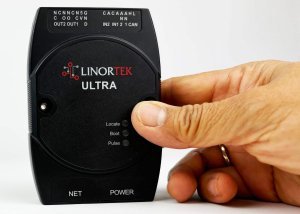

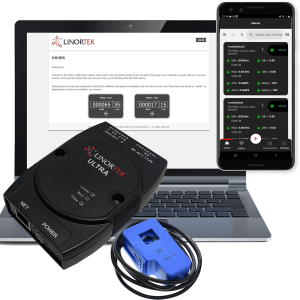

iTrixx-Ultra 300

The Ultra 300 is the latest development of Linortek web-enabled I/O controller with MQTT protocol, hardware-based encryption, supports HTTPS connections, encrypted email servers, CAN interface, increase in RAM and FLASH memories. The iTrixx-Ultra 300 is a housed unit with a DIN rail mountable enclosure that can be snapped onto DIN rail or attached to any flat surface such as a wall or under a counter, built-in web-based software for runtime tracking. The hour recording can be triggered by relay output, digital input or voltage input. It has 2 relay outputs (Dry contact, signal relay,2 Form C, 1A @ 30VDC), 2 optically isolated digital inputs, 2 analog inputs, 1 temperature & humidity sensor input.

Buy iTrixx-Ultra 300 in iTrixx Store

Ultra 300 Ethernet IO Controller, Netbell-Ultra 300 Bell Controller

iTrixx-NHM

The iTrixx-NHM is a housed unit in a Din-rail mountable enclosure, built-in web-based software for runtime tracking. The hour recording can be triggered by relay output, digital input or voltage input. It equips with 2 digital inputs (5-24VDC), 2 relay outputs (1-Form-A relays 48VAC@8A max, dry contact), 1 analog input for temperature & humidity monitoring.

Buy iTrixx-NHM in iTrixx Store

The Network t Hour Meter Software

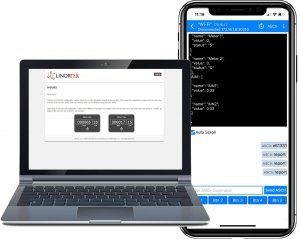

Web-based Hour Meter Software

Once you install the iTrixx on your machine and connect it to your network, it will get an IP address automatically from your router, put the IP address to your web browser to access the software for initial setup to quickly discover equipment uptime and usage data from the web browser or the HourCollector desktop app. Automatically trigger alerts to respond quickly to equipment failure and improve machine efficiencies.

There are two meter counters built-in on the software with independent trigger. You can use one for uptime, one for downtime, or one for machine usage tracking, one for counter of stops of the machine. With the built-in condition-logic task builder allows you to create custom “Tasks” for simple and advanced control logic. Easily create tasks based on inputs or outputs status. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!

Monitor Multi Wifi Hour Meter from HourMeterCollector

The HourCollector Desktop App

With Linortek Network Hour Meter, whether you are maintaining one piece of equipment or multiple pieces, you can now monitor all equipment run time data from our HourMeter Collector program on a PC. The HourMeter Collector program is special designed App that can be used to monitor multiple devices from one simple interface without the needs of logging in to the devices. It will collect the hour runtime every 2 minutes automatically by default. When you run the HourMeter Collector for the first time, it will generate a CSV_FILE folder with your Hour Meter Logs details, which you can use to import to your own management system.

Network Hour Meter + MQTT

MQTT is a simple messaging protocol, designed for constrained devices with low-bandwidth. So, it’s the perfect solution for Internet of Things applications. MQTT allows you to send commands to control outputs, read and publish data from sensor nodes and much more. The new development provides a standard method of communication for iTrixx to reliably communicate data across networks with any IoT platform and applications, it makes it really easy to establish a communication between iTrixx and other devices, enables iTrixx become a standard product in IIoT arena for data acquisition.

Download iTrixx Product Brochure

The Key Features

Collect Data Remotely
• Network enabled all-in-one system, no 3rd party server and no monthly fees
• Internet independent using your intranet
• Record time from 0 to 999,999.99 hours
• Resettable hours for using with existing equipment
• Non-resettable option available
• Two separate hour meters with independent triggers
• Multiply triggers input/relay/input voltage
• Monitor multiple equipment runtime with HourCollector desktop app

Use Data with Ease
• User settable data report interval giving you flexible control of when to get the data
• Import the hour readings data in CSV file to your management software
• Transfer the data automatically with the RESTful API
• Integrate the data to CMMS software using MQTT
• Use relay output to signal alarm devices when maintenance required

Products Comparison

WiFi Hour Meter vs Ethernet Hour Meter

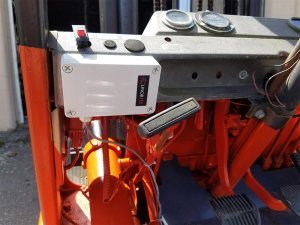

The Ethernet Hour Meter connects to the LAN through a RJ45 cable. Looking for a wireless solution? We have you covered! Check our Wireless Wifi Hour Meter if you need a device to monitor any kinds of mobile equipment such as ground support equipment, construction equipment, forklifts, golf carts, bob cats, heavy duty vehicles.

Model	iTrixx-Ultra 300	iTrixx-NHM	iTrixx-WFMN-ADi	iTrixx-WFMN-Di
Part Number	01-910-00111	01-910-00024	01-910-00060	01-910-00064
Web Server	Built- In (All Software Located on Built-in Web Server)	Built- In (All Software Located on Built-in Web Server)	Built- In (All Software Located on Built-in Web Server)	Built- In (All Software Located on Built-in Web Server)
Software Configuration	Web Browser	Web Browser	Telnet (30316 port)	Telnet (30316 port)
Desktop App	Included	Included	Included	Included
Relay Outputs	2 (Signal Relay, 2 Form C, 1A @ 30VDC, dry contact)	2 (1 FORM A 48VAC@8A Max, dry contact)	2 (Signal Relay, 2 Form C (1A @ 30VDC, 0.3A @ 125VAC, dry contact)	NA
Digital Inputs	2 Isolated mode (ISO): 5-24VDC@30mA max PULL UP mode (PU): used with a switch to activate a signal	2 Isolated mode (ISO): 5-24VDC@30mA max PULL UP mode (PU): used with a switch to activate a signal	2 Isolated mode (ISO): 5-24VDC@30mA max PULL UP mode (PU): used with a switch to activate a signal	2 Isolated mode (ISO): 5-24VDC@30mA max PULL UP mode (PU): used with a switch to activate a signal
Analog Inputs	2 Isolated 2-wire input: voltage: 5V or current 4-20mA 1 for Temp & Humid only	1 for Temp &Humid only	Isolated 2-wire input: voltage: 5V or current 4-20mA	NA
Record Time (hrs)	0 – 999,999.99	0 – 999,999.99	0 – 999,999.99	0 – 999,999.99
Data Integration	RESTful API, MQTT, XML, JSON	UDP, RESTful API, XML	JSON, UDP, MQTT	JSON, UDP, MQTT
Data Monitoring	Local or Remote	Local or Remote	Local or Remote	Local or Remote
Security Protocols	TLS, SSL	NA	TLS, SSL	TLS, SSL
Power Input	12-48 VDC or POE	12-48 VDC or POE	12-48VDC	12-48VDC
Enclosure	DIN Rail Mountable	DIN Rail Mountable	IP66/67 Polycarbonate Box	IP66/67 Polycarbonate Box
Certifications	NA	NA	FCC, CE and ROHS	FCC, CE and ROHS
Network Connectivity	Ethernet Port: 10/100Base-TX PoE	Ethernet Port: 10/100Base-TX PoE	WiFi: IEEE 802.11b/g/n 2.4GHz	WiFi: IEEE 802.11b/g/n 2.4GHz
Order Online	Buy iTrixx-Ultra 300 Now	Buy iTrixx-NHM Now	Buy iTrixx-WFMN-ADi Now	Buy iTrixx-WFMN-Di Now
