Extra Loud Factory Warehouse Break Buzzer System Cover Up to 100K sq.ft - Netbell-4-4Buz

$2,332.00

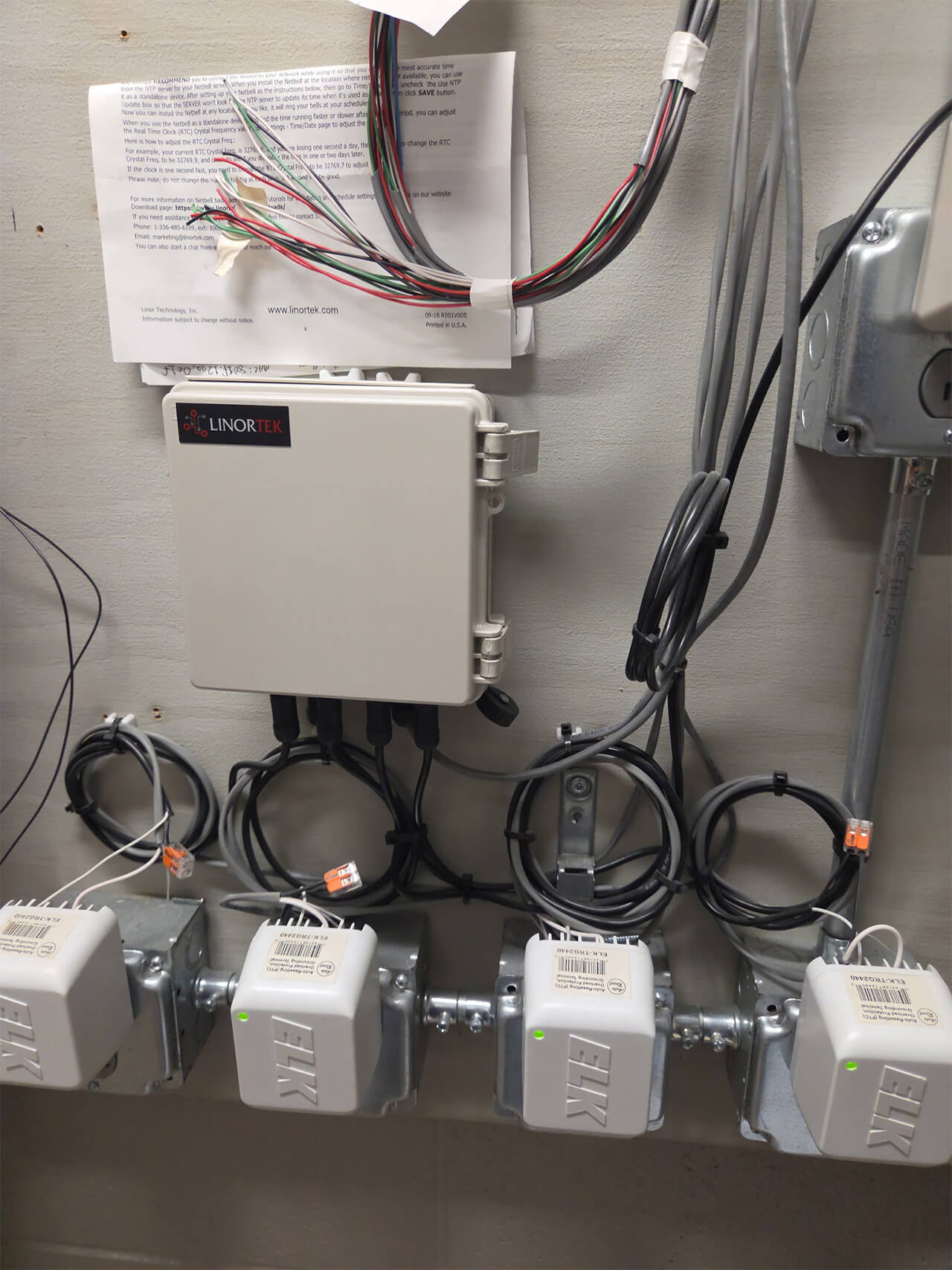

The Netbell-4-4Buz includes everything needed for factories, industrial facilities, warehouses to build a fully automated web-based timed alert system for signaling shift changes, breaks and any other timed signal applications in areas of high ambient noise levels. This kit includes one Netbell-4K networked Bell Controller, four high quality 4 inch high output buzzer kits (100dBa @10′, volume adjustable), each buzzer can cover up to 25,000sqf industrial working area at normal noise level.

The Netbell-4-4Buz is a one-stop solution for factories, industrial facilities, warehouses to build a fully automated web-based timed alert system for signaling shift changes, breaks and any other timed signal applications in areas of high ambient noise levels. This kit includes one Netbell-4K networked Bell Controller, four high quality 4 inch high output buzzer kits (100dBa @10′, volume adjustable), each buzzer can cover up to 25,000sqf industrial working area at normal noise level.

The Netbell-4K is a network enabled bell controller installed within a NEMA (IP66) rated box that can be used in environment where dust and non-direct water are issues. There are 4 relay outputs (Dry Contact, 1-Form-A relay 48VAC@8A Max) that can be used to control up to 4 bells/buzzers and other timed signal equipment, 1 digital input that can be used to wire a push switch to ring the buzzer manually for emergency. It’s built on a TCP/IP platform with a built-in web server and special software designed for scheduling a bell system, all software and mounting hardware required for installation and operation are included. With the built-in web interface, you can access, control and schedule bells over a network or the Internet, no additional software or designated computer required.

It’s ready to go out of the box, wire the buzzers to the buzzer (relay) outputs of the Netbell-4K controller, plug the controller to the power outlet with the provided power supply, and connect it to the network switch with the provided cables, it can be connected anywhere on the network and does not require a direct connection to a PC. Scheduling and setup are accessed through any standard web browser or BellScheduler desk app. For those who wish to forego networking the Netbell, it is also able to function as a stand-alone device. Connecting the unit to a PC, add the bell schedules, then remove, and it will function as scheduled.

How It Works

  • Wire the buzzer to the power supply.
  • Connect the buzzer to the Netbell-4K bell controller.
  • Power the controller and connect it to your network – it can go anywhere on your network, no direct PC connection needed.
  • Add bell schedules from a standard web browser (or the free BellScheduler desktop app) – up to 500 events.

The Key Features

  • COMPLETE 4-BUZZER KIT – Affordable break buzzer system with a Netbell-4K controller and four 110 dBA extra loud buzzers for high-noise factories and warehouses.
  • COVERS UP TO 25,000 SQ FT EACH BUZZER – Four 4-inch buzzers cover large, noisy areas up to 100,000sq.ft so breaks and shift changes are always heard.
  • SCHEDULE FROM ANY BROWSER – Program up to 500 break, shift, and lunch events from any browser; no monthly fees.
  • NETWORK OR STANDALONE – Runs anywhere on your network or offline; wire a push switch for manual emergencies.
  • MADE IN THE USA – A low-cost way to replace an old bell timer; designed, built, and supported in the USA.

What is in the box

  • One Netbell-4 SERVER
  • One power cable
  • One RJ45 network cable
  • Four bell cables
  • One 12VAC power supply
  • Wall mounting brackets and hardware
  • Four extra loud buzzer kits (each buzzer kit includes one buzzer, one weatherproof back box, one 24VAC power supply and one 10ft cable)
    • 10M/100M RJ45 Internet interface with connection and activity LEDs
    • 4 Dry Contact outputs, 1-Form-A relay 48VAC@8A Max
    • 1 optically isolated digital input, 12V 1mA or pull-down switch selectable
    • Status LEDs (pulse, bootloader, and locate)
    • Ethernet Bootloader (for server hardware code upgrade)
    • 12VAC power supply (for controller), 100-240VAC50/60Hz
    • 1-meter CAT5 cable supplied
    • On board temperature sensor and input voltage sensor
    • Working temperature from 0 to +70 Celsius
    • Storage temperature from -40 to +125 Celsius
    • Humidity from 10% to 80% non-condensing
    • Supported Protocols: HTTP/SMTP/SNTP
    • Bell kit: 6-inch 12 VDC, Die Cast Aluminum Enclosure, Volume: >= 86dB, weather proof backbox, 12VDC power supply included
    • Extra loud bell kit: 6 inch ell, 24VAC, produces102dBa@1m and 92dBa @10', 90dBa@30’ from our in-house testing, color: grey, 24VAC power supply included
    • Extra loud buzzer kit: 4 inch buzzer (24VAC, produces100dB @ 10'), color: grey, 24VAC power supply included
Download the Documentation

Netbell-4-4Buz-with-Buzzer-Kit-Packing-List-and-Wiring-Instructions.pdf
Netbell Quick Setting Instruction
Netbell-User-Manual.pdf
Use-Push-Switch-To-Ring-Bell-Manually-for-Emergency.pdf

Software Configuration

Download the Discover app to find the IP address on your network

Download the Discover App for Windows from the link below (the file is a ZIP file – please extract after downloading):

Linortek Discover for Windows

Alternatively, you can download the Java-based Discover program if you believe you have the Java runtime installed on your PC, you can download the Java-based Discover program here (the file is a ZIP file – please extract after downloading):
Linortek-TCPIP-Discoverer.zip

Download the Netbell BellScheduler Desktop App and Instructions

If you own one Netbell device, it will be easy to add bell schedules from the webpage of your device. However, if you have multiple Netbell devices, you can use our free BellScheduler desktop app to add bell schedules from a single interface.

Netbell-BellScheduler-Desktop-App-Setting-Instruction.pdf Netbell-BellScheduler.zip

Video Tutorials

How to wire an external buzzer to the Netbell-KB

(This video shows how to wire a buzzer to Netbell-KB, to wire a buzzer to the Netbell-4K controller will be the same.)

Finding the IP address using the Discover program
Netbell Software Initial Setup – Basic Settings
How to Use the Netbell BellScheduler Desktop App
Reset to Factory Default

FAQs

General Questions
Network Questions
Netbell Configuration Questions
