Creative Bell Programming Solves Single-Output Challenge with Netbell-2
Transforming Infrastructure Limitations into Advanced Signaling Solutions
Discover How Linortek Technical Support Unlocked Dual Ring Patterns – A Quick Snapshot of Innovation
From the start, this industrial facility wondered if one bell controller could create multiple distinct alert patterns using just a single physical output. They needed two different ring patterns—solid and pulsed—but were constrained to existing wiring infrastructure with only one bell connection point.
Could creative programming of standard features really deliver sophisticated signaling without additional hardware? Here’s what they hoped to achieve:
- Distinct Alert Patterns – Two completely different ring styles for different types of notifications
- Infrastructure Preservation – No rewiring or additional bell installations required
- Cost-Effective Solution – Maximum functionality from existing hardware investment
- Easy Management – Simple scheduling and control through web interface
Keep reading to discover how Linortek’s technical support transformed standard product features into an innovative solution—with no custom software development required.
Client Overview
A network engineer from a leading manufacturer of spiral fin and plate fin heat exchanger coils and related heat transfer equipment contacted Linortek’s technical support with a unique challenge. The operation required sophisticated bell signaling capabilities but faced a critical constraint: their existing infrastructure limited them to a single physical bell output where their bell chain was connected.
This scenario is common in retrofit situations where existing wiring infrastructure cannot be easily modified due to budget constraints, operational requirements, or facility limitations. The customer needed to maximize the capabilities of their Netbell-2 controller while working within these real-world constraints.
The Challenge: Multiple Alert Patterns, Single Output Constraint
Like many industrial operations upgrading legacy systems, this facility struggled with:
- Pattern Differentiation: Need for two distinct bell ring patterns—a solid 5-second ring for certain events and a pulsed pattern (3 quick rings) for different alert types
- Infrastructure Limitations: Only one physical bell output (Output 1) available for all signaling requirements
- Cost Constraints: Additional wiring or hardware installation not feasible within project budget
- Operational Requirements: Clear audio differentiation needed to prevent confusion between different types of alerts
- Technical Complexity: Uncertainty about whether standard controller features could achieve the desired functionality
“We need two completely different ring patterns but can only use the single output where our bell chain is connected. Is this even possible with the standard controller?” the customer asked during their initial technical support consultation.
Innovative Solution: Expert Configuration of Standard Netbell-2 Features
Working closely with Linortek’s technical support team, the customer discovered that the Netbell-2’s built-in logic task capabilities and virtual relay functionality could be creatively configured to achieve exactly what they needed. The solution required no custom software—just expert guidance on utilizing existing features in an innovative way.
Key Elements of the Configuration
Hardware Utilization & Programming The Netbell-2 controller was configured to leverage its advanced logic task system and virtual relay capabilities through standard programming interfaces.
Strategic Logic Task Architecture – Used built-in task scheduling system to create three interconnected logic tasks – Implemented OR gate functionality and delay timing controls through standard configuration pages – Enabled “Extend Relay Range” feature to access virtual Bell (Relay) #3 functionality
Pattern Creation Through Timing Control – Configured Bell1 pulse width to 1 second using Services > In/Out page for pattern creation capability – Programmed solid ring pattern using delay timing (1,1) for continuous 5-second operation – Implemented pulsed pattern using delay timing (1,2) for distinctive 3-pulse sequence
Schedule Management Integration – Set up bell scheduling through Services > Bells page with strategic output assignments – Configured Bell2 activation for events requiring solid ring pattern – Assigned Bell3 activation for events requiring pulsed ring pattern
Implementation Process: From Concept to Operation
The technical support team guided the customer through a systematic four-step configuration process, ensuring the solution worked perfectly before going live.

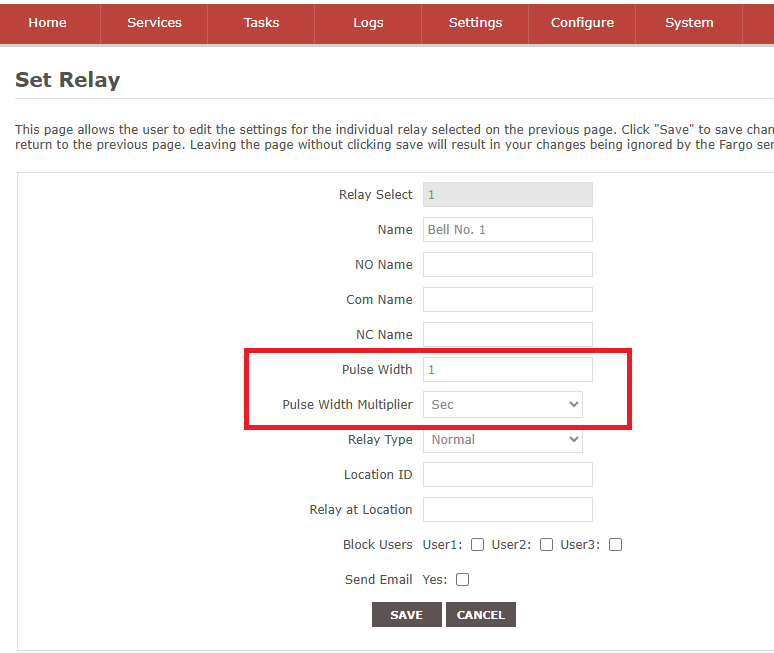

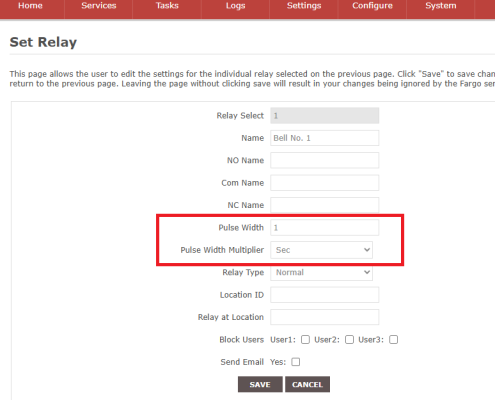

Step 1: Set Bell1 Duration to 1 Second
- Go to Services > In/Out page.
- Click the edit (pencil) icon for Bell #1.
- Set the Pulse Width to “1” (1 second).
- Click Save.
- This critical configuration enabled the foundation for pattern creation
Step 2: Logic Task Programming: Create 3 Logic Tasks (Patterns)
Created Task 1: Trigger Bell1 from Bell2 OR Bell3
- DeviceA|DataA: Relay | 02+
- Logic: OR
- DeviceB|DataB: Relay | 03+
- DeviceC|DataC: Relay | 1
- Action: ON
This task activates Bell1 whenever Bell2 or Bell3 is triggered.

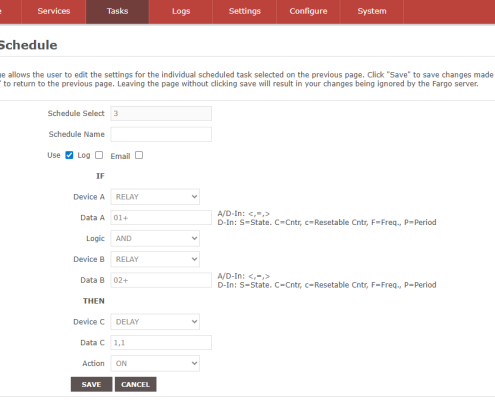

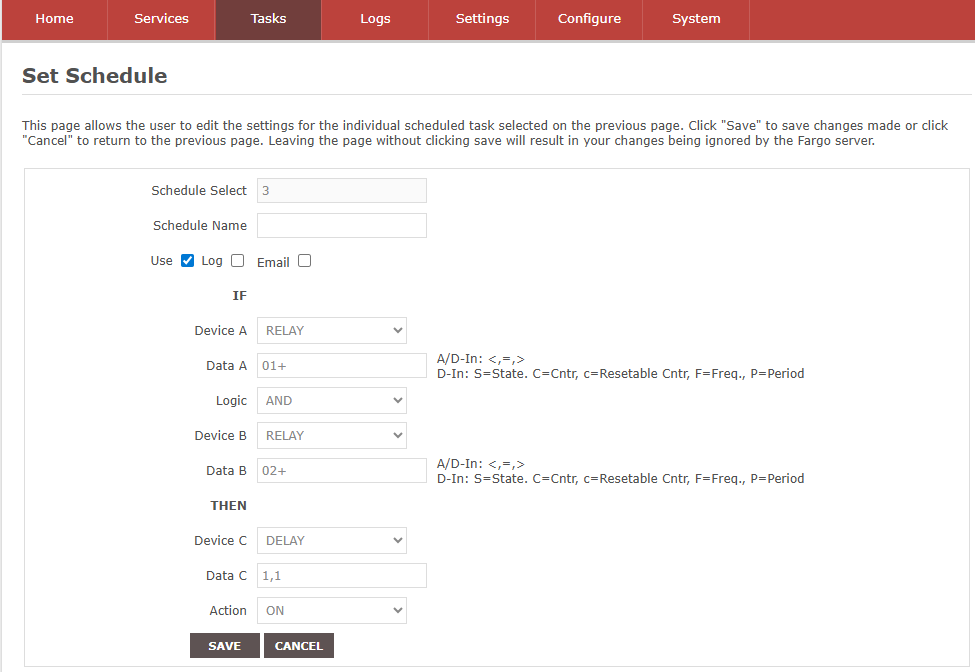

Configured Task 2: Solid Ring Pattern – 5 Seconds
- DeviceA|DataA: Relay | 02+
- Logic: – none
- DeviceB|DataB: none
- DeviceC|DataC: Delay | 1,1
- Action: ON
This task ensures that when Bell2 is activated, Bell1 rings solid for 5 seconds (Bell 1 will get activated 4 times without a pause).

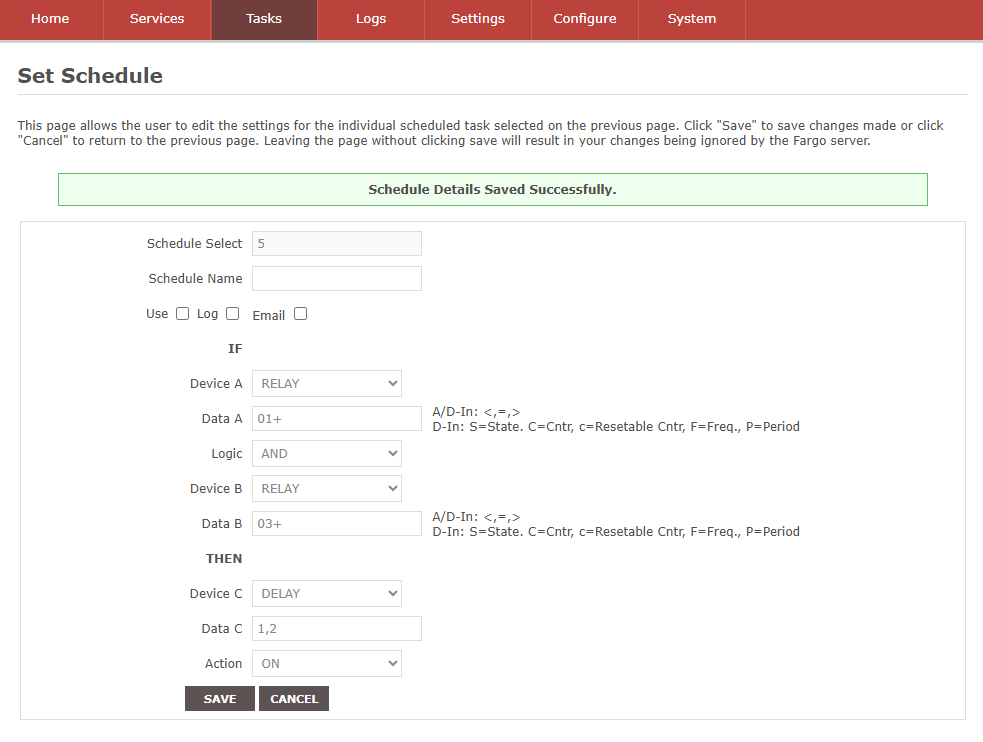

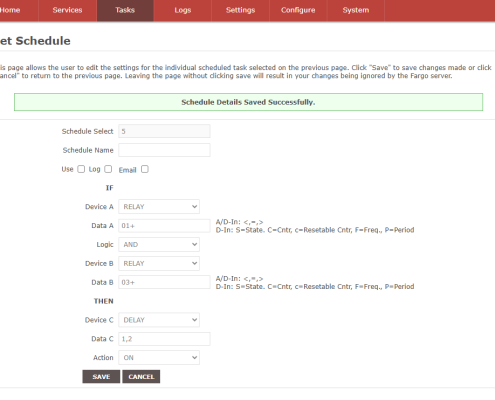

Step 3: Extended Features Activation
- Enabled “Extend Relay Range” in Settings > Settings page
- This standard feature unlocked virtual relay functionality needed for pattern differentiation

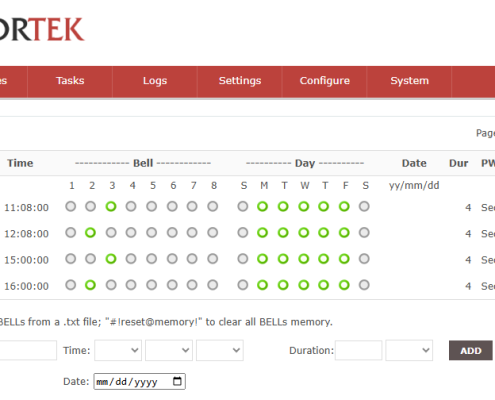

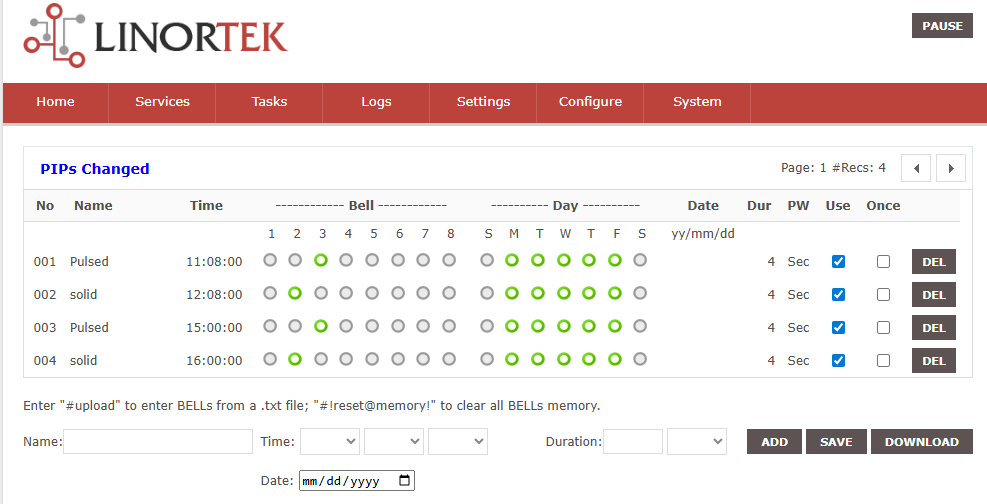

Step 4: Schedule Integration & Testing
- Configured bell schedules with Bell1 disabled for direct activation
- Assigned Bell2 and Bell3 to appropriate scheduled events
- Validated both patterns operated correctly through comprehensive testing
Technical Highlights
The Netbell-2’s robust programming capabilities delivered sophisticated functionality through standard features:
- Advanced Logic Programming – Built-in task system enabled complex trigger relationships and timing control
- Virtual Relay Functionality – Extended relay range feature provided additional logical outputs without physical hardware
- Flexible Timing Control – Delay settings allowed precise pattern creation and duration management
- Web-Based Configuration – All programming accomplished through intuitive browser interface
Together, these features transformed a single physical output into a sophisticated dual-pattern signaling system.
Results — Sophisticated Signaling from Standard Features
After implementing the configuration, the facility immediately gained the advanced signaling capabilities they needed. The solution exceeded expectations by demonstrating how creative application of existing features could solve complex challenges.
Key achievements include:
- Dual Pattern Success – Two completely distinct ring patterns operating flawlessly from single output
- Zero Hardware Costs – No additional controllers, bells, or wiring required
- Enhanced Communication – Clear audio differentiation between alert types eliminated confusion
- Expert Technical Support – Step-by-step guidance ensured successful implementation
- Future Flexibility – System supports up to 500 programmable events with easy pattern assignment
- Immediate Operation – Solution deployed and operational same day as configuration
In short, expert technical support and creative feature utilization turned infrastructure limitations into an opportunity for enhanced functionality.
Customer Feedback
The customer was impressed with both the technical solution and the quality of support received:
“We weren’t sure this was even possible with our constraints, but Linortek’s technical support team showed us exactly how to configure the controller to do what we needed. The step-by-step guidance was excellent, and now we have exactly the dual ring patterns we wanted using just our single output. It’s working perfectly.”
The feedback highlighted not just the successful technical outcome, but the value of Linortek’s commitment to helping customers maximize their investment through expert application of existing product capabilities.
Integration Benefits for Bell System Upgrades
Many facilities struggle to upgrade legacy bell systems while working within existing infrastructure constraints. This case study shows how Linortek bridges that gap through expert technical support and creative feature utilization.
- Maximize Existing Investment: Advanced functionality from standard controller features
- Expert Technical Guidance: Step-by-step support for complex configurations
- Infrastructure Preservation: No rewiring or additional hardware required
- Future Scalability: Easy expansion and modification as needs evolve
Key Takeaways for Industrial Operations
Any facility looking to upgrade bell systems can apply these lessons:
- Creative Programming: Standard features can often achieve sophisticated functionality with expert guidance
- Technical Support Value: Quality support transforms product capabilities into real-world solutions
- Infrastructure Constraints: Limitations can become opportunities for innovative applications
- Cost-Effective Upgrades: Maximum functionality without major infrastructure investment
In short, any industrial facility, school, or warehouse ready to modernize their alert systems can rely on Linortek’s Netbell-2 and expert technical support—a powerful combination that turns standard features into customized solutions.
